ATTO FastFrame 3 Ethernet products deliver unmatched performance, the lowest latency in the industry and the versatility needed to support the most demanding and complex ecosystems. Supported line speeds of up to 100 GbE and latencies as low as 1 μs enable FastFrame 3 NICs to be used throughout the data center - from core to edge.

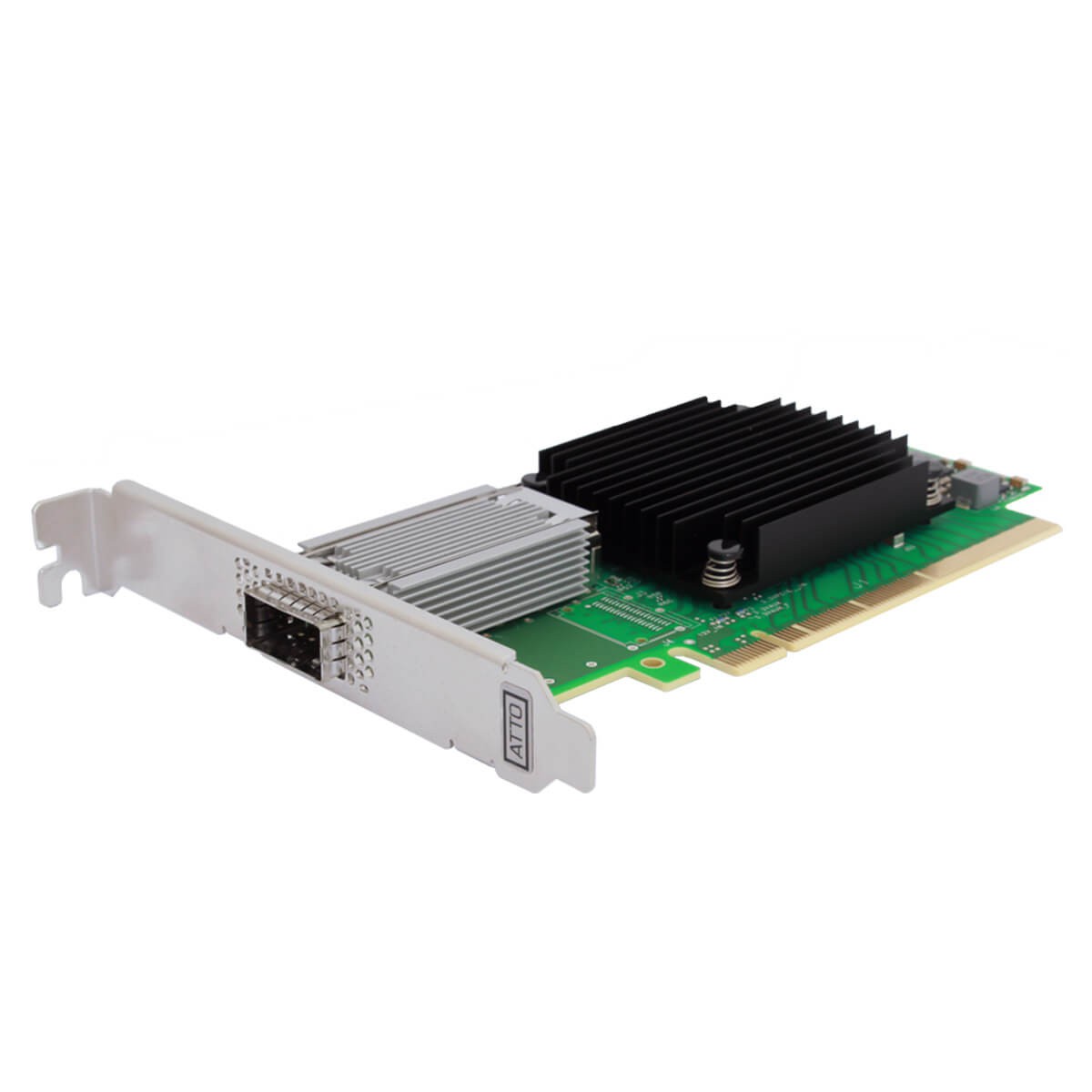

ATTO FastFrame N311 Single Channel 10/25/40/50/100GbE x16 PCIe 3.0 Integrated QSFP28
The comprehensive ATTO FastFrame 3 line of smart NICs includes single- and dual-port 10/25/40/50/100GbE models suitable for a wide range of high-performance applications such as video post-production, finishing and imaging, as well as IT applications such as data analytics and hyperconverged servers. Congestion control, CPU offloading for transport operations and energy-efficient Ethernet ensure the high quality and performance that ATTO customers are accustomed to.
10/25/40/50/100 GbE support
QSFP28 and QSFP+ support (integrated QSFP28)
Built-in hardware offload< a i=3>HVGRE, VXLAN, GENEVE supportClear offload codingTarget NVMe over Fabrics offload (100GbE only)3 -year standard product warranty
Specification:
FFRM-N311-000
10/25/40/50/100GbE Interface:
- 1us MPI ping latency via RoCE
- CPU offload of transport operations
- Guaranteed bandwidth and low-latency services
- Energy efficient Ethernet
- Supports Bi-Directional QSFP+ (BiDi)
Offloads (reduce CPU Overhead):
- RDMA over Converged Ethernet
- TCP/UDP/IP stateless offloads
ProtocolSupport
- MPI, Platform MPI
- TCP/UDP
- iSER
- SMB RDMA
- Support for MSI and MSI-X
Host Bus Specifications:
- x16 mechanical and electrical PCIExpress 3.0 interconnect
Driver Support:
- macOS (includes Apple silicon M1/M2 devices)
- Windows 10, Windows 8.1, Windows Server 2016, Windows Server 2012, FreeBSD
- Latest kernels of RHEL, SLES
Others
- -000 SKUs include QSFP28 optical transceiver, Multimode Fiber (mmf)
- 3 year standard product warranty
- RoHS compliant
