ATTO FastFrame NS12 SFP+ is a dual-port network card that saves PCI slots, providing a more flexible system design, while consuming up to 60% less energy than competitive solutions. Lower power ratings mean lower energy costs, lower data center maintenance fees, and less worries about heat dissipation. This high-performance card includes high-quality pluggable SFP+ optical transceivers - a hidden cost in some competing cards - and supports direct-attached copper cables.

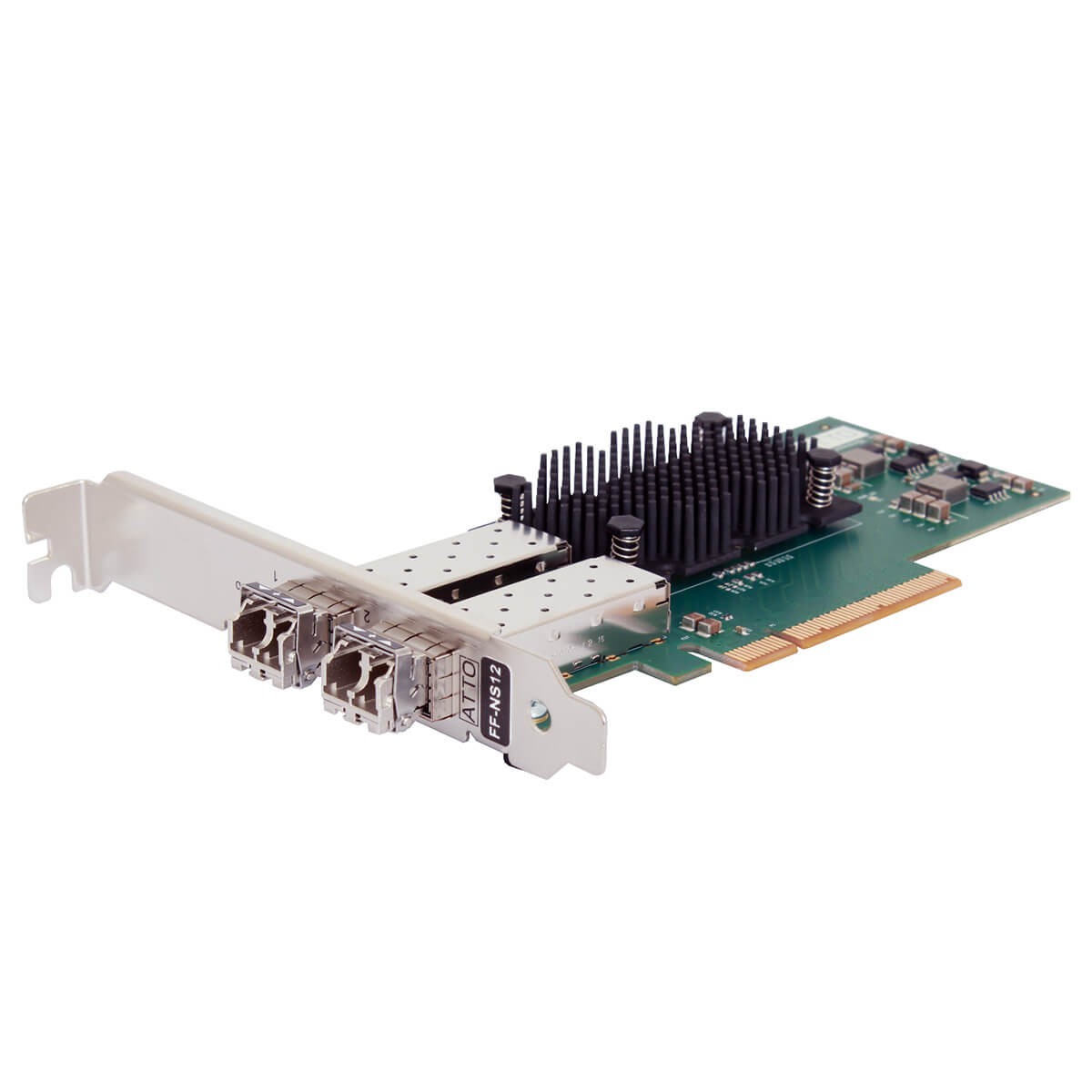

ATTO FastFrame NS12 Dual Channel x8 PCIe Gen2.0 10GbE Optical SFP+ LC
ATTO FastFrame NS12 SFP+ is a dual-port network card that provides link aggregation capabilities for additional available bandwidth or link failover.
In addition to extensive support for Windows® and Linux operating systems for servers and desktops, ATTO is a leader in high-performance I/O connectivity in macOS® environments. ATTO also offers Xtend SAN, an iSCSI initiator for macOS®, as a complete solution. Get network adapters for multi-OS environments from a single source - renowned for data-intensive content editing requirements.
ATTO FastFrame outperforms the competition on OS X while using significantly less power - reducing heat dissipation issues. ATTO engineers develop FastFrame NICs that deliver stable, near-transmission-line data rates across a wide range of file sizes for predictable network performance, and provide a single source for OEM 10Gb Ethernet requirements: single-, dual-, and quad-port optical NICs and Adapters CNA that supports Direct Attach Copper technology and supports Mac, Linux and Windows. Protocol support includes enhanced/lossless Ethernet and iSCSI.
If you have a question or problem, at ATTO you can expect detailed answers and competent assistance based on 20 years of experience in data-intensive environments.
Specification:
FFRM-NS12-000
10GbE Interface:
- Data Center Bridging (DCB)/Enhanced Ethernet
- Flow Control
- MSI Support
- Jumbo frames
- Link Aggregation
Offloads (reduce CPU Overhead):
- IPv4 Header Checksum
- TCP/UDP Checksum (IPv4 & IPv6)
- VLAN Offload
- IPsec Offload (Windows)
For Windows & Linux:
- NUMA & RSS (allows load-balancing across CPUs)
- RMON
- SNMP
- SR-IOV
For Virtualization:
- Advanced Packet Filtering
- VM Load Balancing
- VMDq Teaming Support
Host Bus Specifications:
- x8 mechanical and electrical PCIExpress 2.0 interconnect
- Backward compatible with PCIExpress 1.1
- Supports PCIe Base Spec 2.0, CEM Spec 2.0
Driver Support:
- Windows, Windows Server
- Linux RHEL, SLES (Latest Kernels)
- macOS® (includes Apple silicon M1/M2 devices)
- VMware ESXi (Latest Revision)
- Thunderbolt-aware driver
Others
- Includes SFP+ optical transceiver, Multimode Fiber (mmf)
- 3 year standard product warranty
- RoHS compliant
