The Abart Pro ABP-AS3408 9400-8i SAS/SATA/NVMe 12Gb/s x8 PCIe 3.0 controller is a three-mode mass storage adapter - HBA - based on the LSI SAS 9400-8i chipset. It is an ideal solution for high-end servers or workstations using internal storage or connecting to large external storage enclosures. It has the ability to support NVMe, SAS or SATA storage devices in a single drive bay, providing maximum flexibility in the design of server systems.

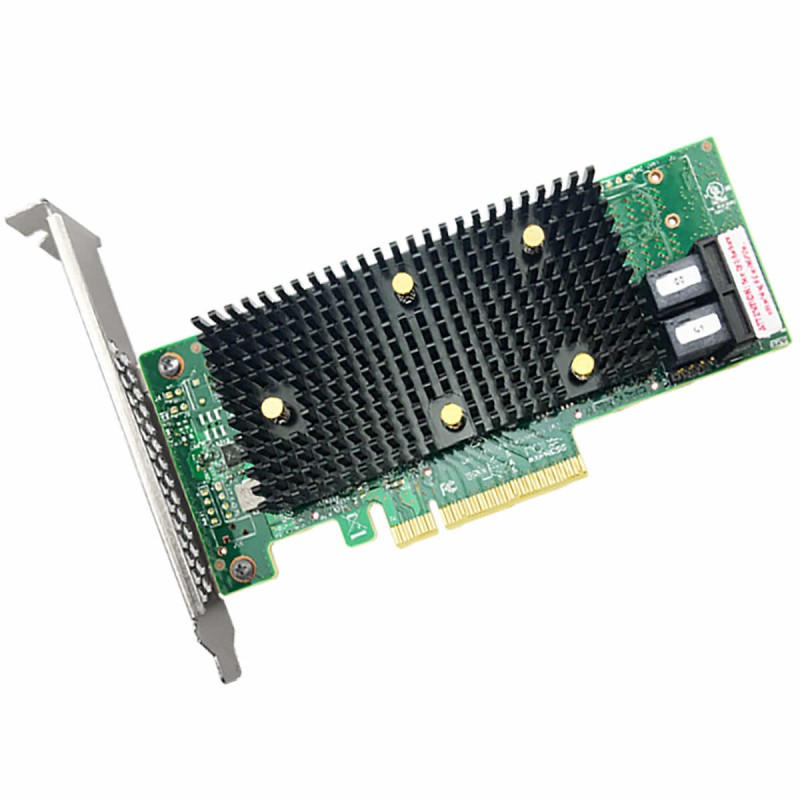

HBA Abart Pro SAS SATA 12Gb/s 9400-8i Broadcom LSI SAS 3408 PCIe 3.0 8 internal HDD | SSD | NVMe
// CE price widget hide karo
Price:
zł619.00
Tax included
Price Alert
Found it cheaper? Let us know!
Abart Pro ABP-AS3408 is a three-mode storage adapter based on the LSI SAS 9400-8i chipset. It is an ideal solution for high-end servers or workstations using internal storage or connecting to large external storage enclosures. It has the ability to support NVMe, SAS or SATA storage devices in a single drive bay, providing maximum flexibility in the design of server systems.
With up to eight internal ports, up to 1,024 SAS/SATA or 24 NVMe devices can be connected to the Abart Pro ABP-AS3408 controller, ensuring excellent scalability. The Abart Pro ABP-AS3408 SAS/SATA 12Gb controller is based on the SAS3408 IO controller and features the latest x8 lane PCI Express 3.1 connectivity, providing increased connectivity and maximum performance required by mission-critical applications. Moreover, the low-profile adapter fits easily into any small housing.
Main features:
- Code: ABP-AS3408
- Type: NVMe Controller, SAS 12Gb/s, SATA 6Gb/s 9400-8i
- Chipset: LSI SAS 3408
- Bus: PCIe 3.1 x8
- Transfer speed: Half Duplex, 8,000 MB/s
- SAS bus speed: 12Gb/s
- Number of ports: 8
- Number of connectors: 2x Mini SAS HD SFF8643 x4
- Supported drives: SAS/SATA 1024, NVMe 24
- Supported operating systems: Microsoft Windows, VMware vSphere/ESXi, Red Hat Enterprise Linux, SuSE Linux, Ubuntu Linux, Citrix XenServer, CentOS Linux, Debian Linux, Oracle Enterprise Linux, Fedora, FreeBSD
- Included grilles: full profile, low profile
- Certificates: CE, RoHS, FC
