The OWC 10GbE PCIe network card allows you to download and save files at actual, tested speeds of over 900 MB/s, i.e. up to 10 times faster than a standard 1 Gb/s network card. The card is compatible with the AVB standard and Jumbo Frame technology.
Karta sieciowa OWC 10GbE PCIe
Pro Audio Video AVB Redy
It transmits large amounts of data in a short time, such as audio and video streams, requiring equipment supporting Audio Video Bridging technology (IEEE 802.1Qav, AVB).
Don't worry... the OWC 10Gb Ethernet card can stream massive amounts of high-quality data to multiple destinations in real-time with very low latency over your existing network cable.
Highest transfer and backward compatibility

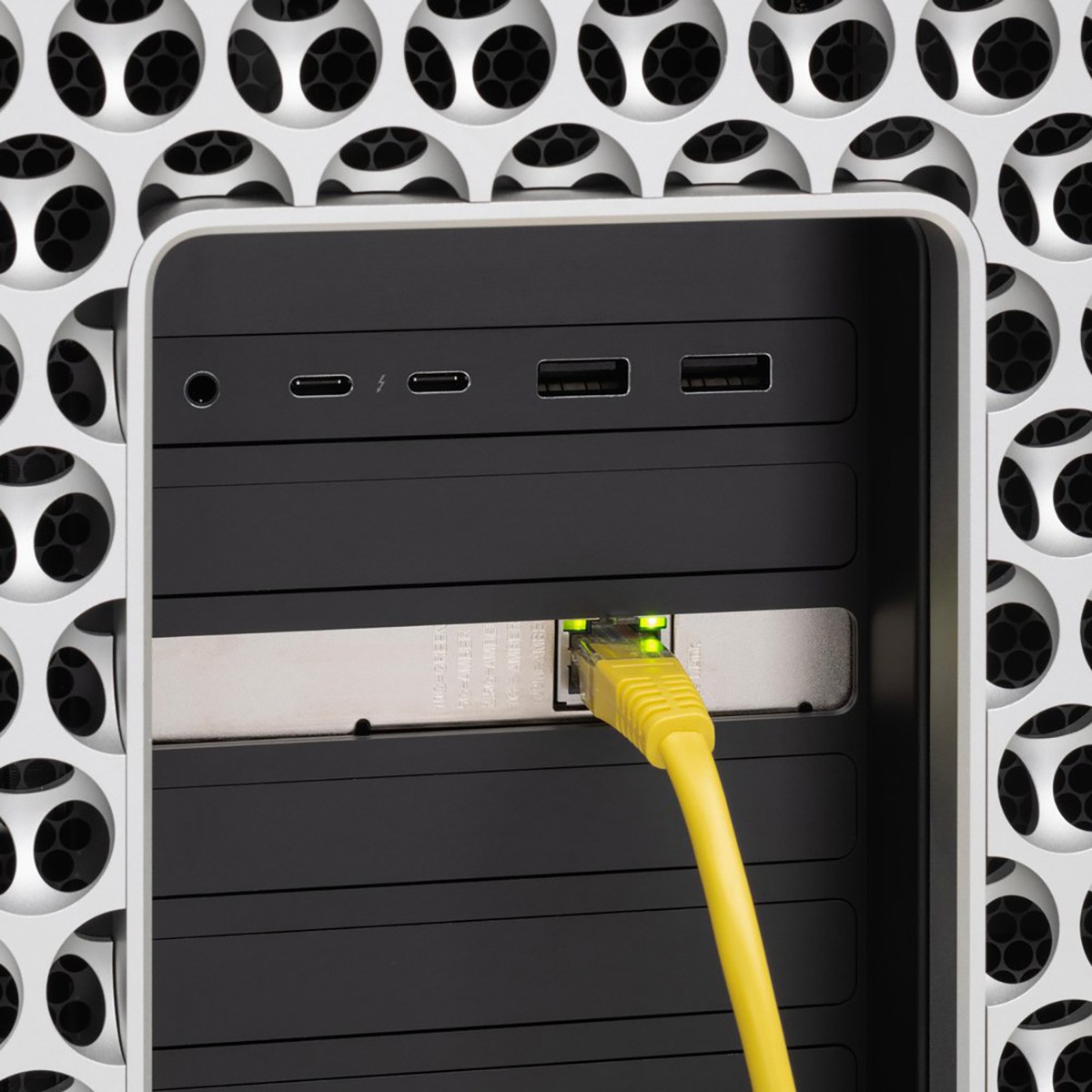

Connecting an OWC 10G PCIe network card to a Mac PRO or PC with a free PCIe slot dramatically increases file transfer speeds.
Now you can access the 10GBASE-T 10Gb Ethernet network and other devices such as Network Attached Storage (NAS) systems to transfer large multimedia files at speeds of over 900 MB/s in real time.
The card is backward compatible with other Ethernet standards, including 5GBASE-T, 2.5GBASE-T, 1000BASE-T and 100BASE-Tx, improving project efficiency and workgroup collaboration with the fastest network connection available.
Key Features:
- Operating system:
Apple Mac: from macOS 12.x Monterey
PC: from Windows 8, Windows Server 2012, Windows Server 2016 - Other requirements:
macOS 12.x or later required.
Ethernet driver for Windows required - Interface:
PCIe 2.0, 3.0, 4.0
10Gb Ethernet (RJ45) - 10GbE controller: Marvell AQC113CS
- Network speed: 10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s, 100Mb/s
- Features:
Auto-negotiation
Jumbo frames up to 16K
Audio Video Bridging (AVB) – IEEE 802.1Qav
Multicast filtering
Interrupt coalescing
Wake-on-LAN (WoL)
Quality of Service (QoS)
Flow control support
IPv4, IPv6/TCP and IPv6/UDP checksum offload
TCP Segmentation Offload (TSO) “Large Send Offload”
Large Receive Offload (LRO)
Receive-Side Scaling (RSS)
Energy-Efficient – IEEE 802.3az
