Sonnet Solo 10G PCIe is a network card enabling data transmission at a speed of up to 10 Gb/s using cabling in the CAT 6, CAT 6A standard or up to 5 Gb/s in the CAT 5e standard.< /span>
The card is fully compatible with macOS and Windows systems. It can be used directly to the PCIe connector in Apple Tower computers, i.e. Mac Pro 5.1 or Mac Pro 7.1, or through a PCIe enclosure connected to the Thunderbolt 3 or Thunderbolt 4 connector.
Card compatible with Hackintosh systems.

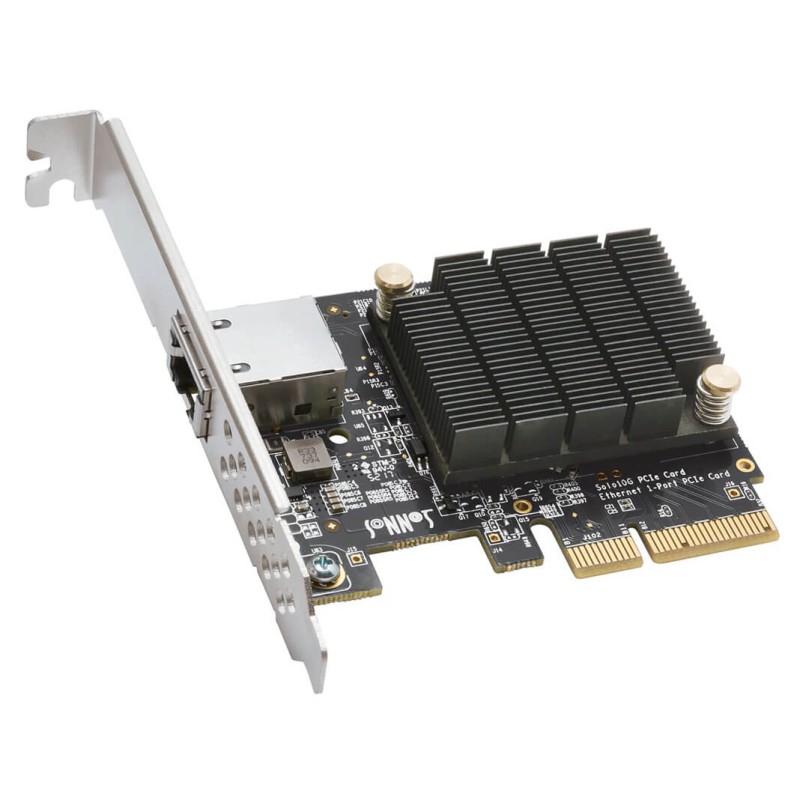

Sonnet Solo 10G PCIe 10GbE AVB Mac Pro, MacOS, Win
Thanks to the Sonnet Solo 10G PCIe Card, you can expand your computer and gain access to a network with a bandwidth of up to 10 Gbit/s

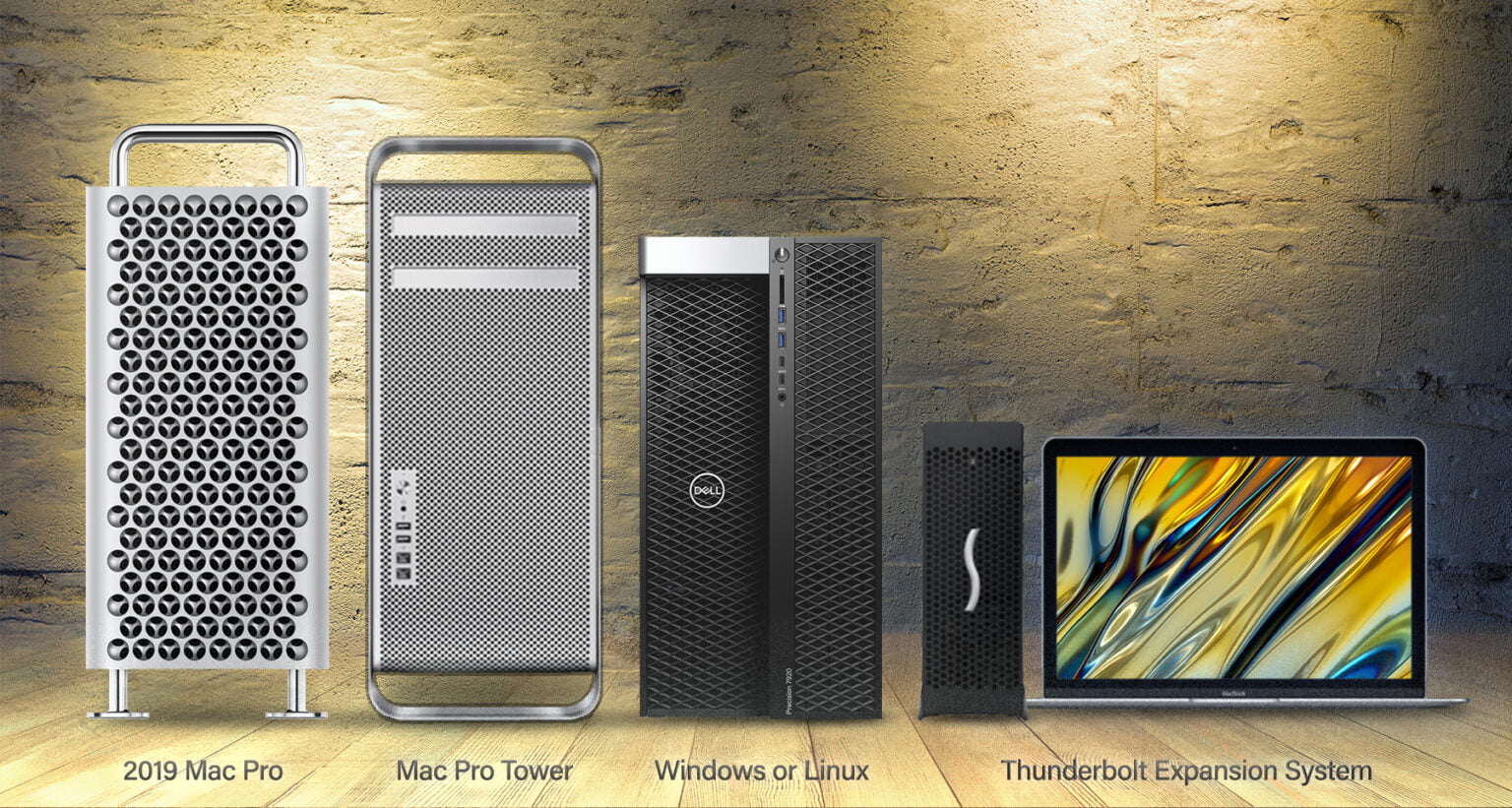

Card compatible with computers Apple Mac Pro 5.1 and 7.1, PCIe enclosures connected via Thunderbolt 3 or Thunderbolt 4, and computers with Windows.
The card works with Hackintosh designs.
AVB support
Support for audio-video bridging (IEEE 802.1Qav, AVB) makes the Solo10G card ideal for use in professional audio and video applications where synchronization of data streams is critical.
Technical Specifications:
- Card format: Low-profile PCIe
- Data port: 10GbE RJ45
- Controller: Aquantia AQC-107S
- 10GBASE-T support: up to 100m CAT6A or 55m CAT6
- 5BASE-T / 2.5BASE-T / 1G support: up to 100m CAT5e
- Transfer speed: 10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s, 100Mb/s
- Flow control support
- MSI (Message Signaled Interrupts)
- RSS (Receive-Side Scaling)
- Interrupt coalescing
- Multicast filtering
- Energy-Efficient Ethernet (IEEE 802.3az)
- AVB (IEEE 802.1Qav)
- 64-bit address support
- Wake-on-LAN supported
- RoHS 3 compliant
- IEC62368-1 and IEC62368-2
System compatibility:
- macOS Monterey
- macOS 10.13.6+
- Windows 11, 10, 8, 7; Server editions
- Linux
- VMware ESXi
