TerraMaster D16 Thunderbolt 3
is a 16-bay, external DAS enclosure with a hardware RAID 0/RAID 1/RAID 5/RAID 9/RAID10/JBOD system connected to a computer via an efficient Thunderbolt 3 port.
Take advantage of high disk performance - up to 2817MB/s while maintaining low prices and large capacities. – up to 288TB – HDD disks.
TerraMaster D16 Thunderbolt 3 – 16x HDD/SSD 0TB
TerraMaster D16 Thunderbolt 3

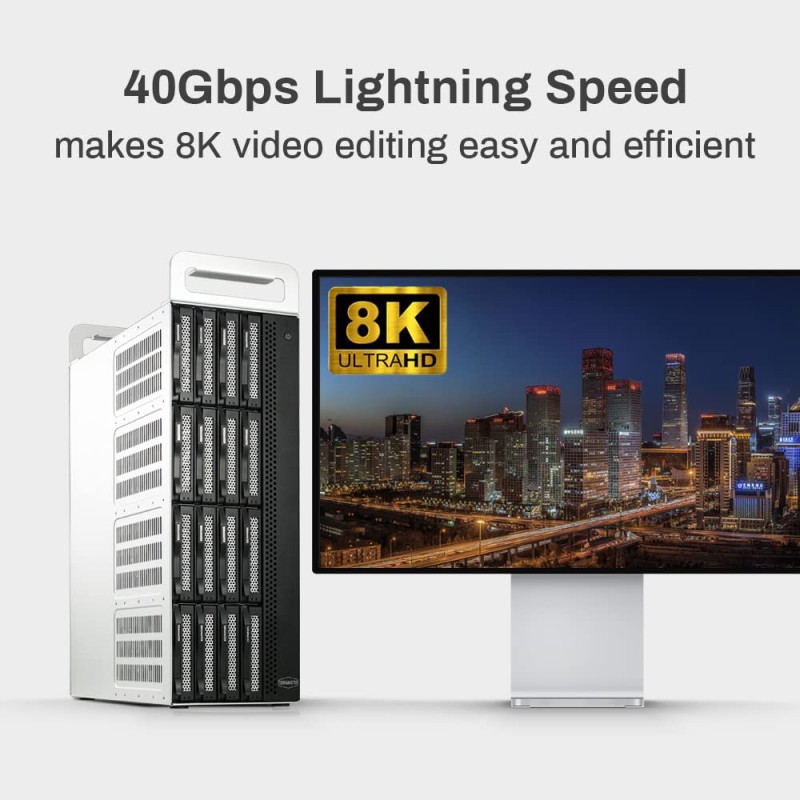

TerraMaster D16 Thunderbolt 3 is the fastest DAS enclosure in TerraMaster's offer, designed for creators who need both very large disk space and very fast data transfers. This 16-bay system delivers transfer rates of up to 2,817 MB/s and a total capacity of up to 288TB.

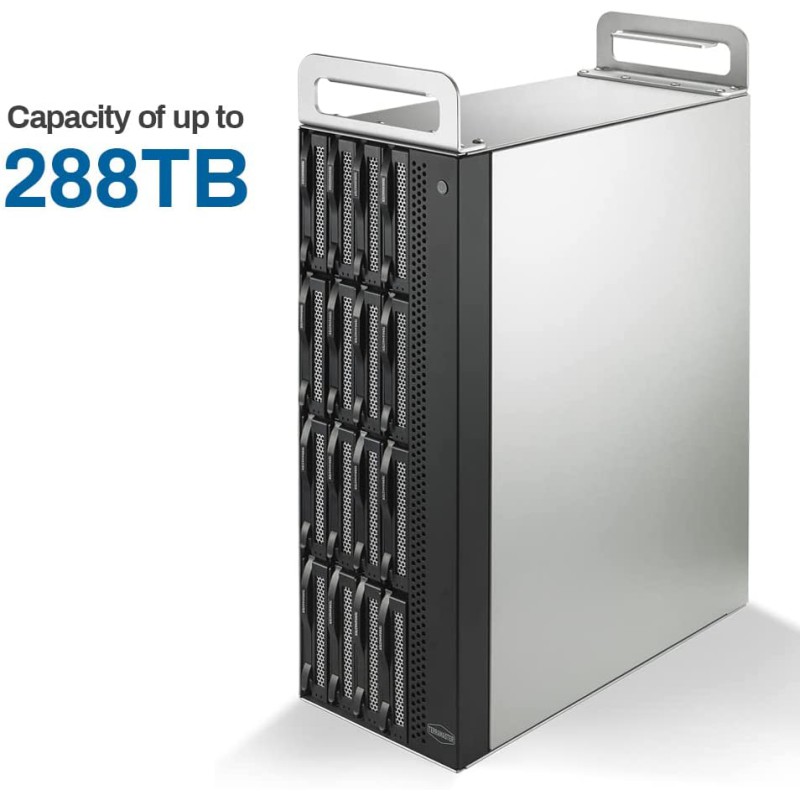

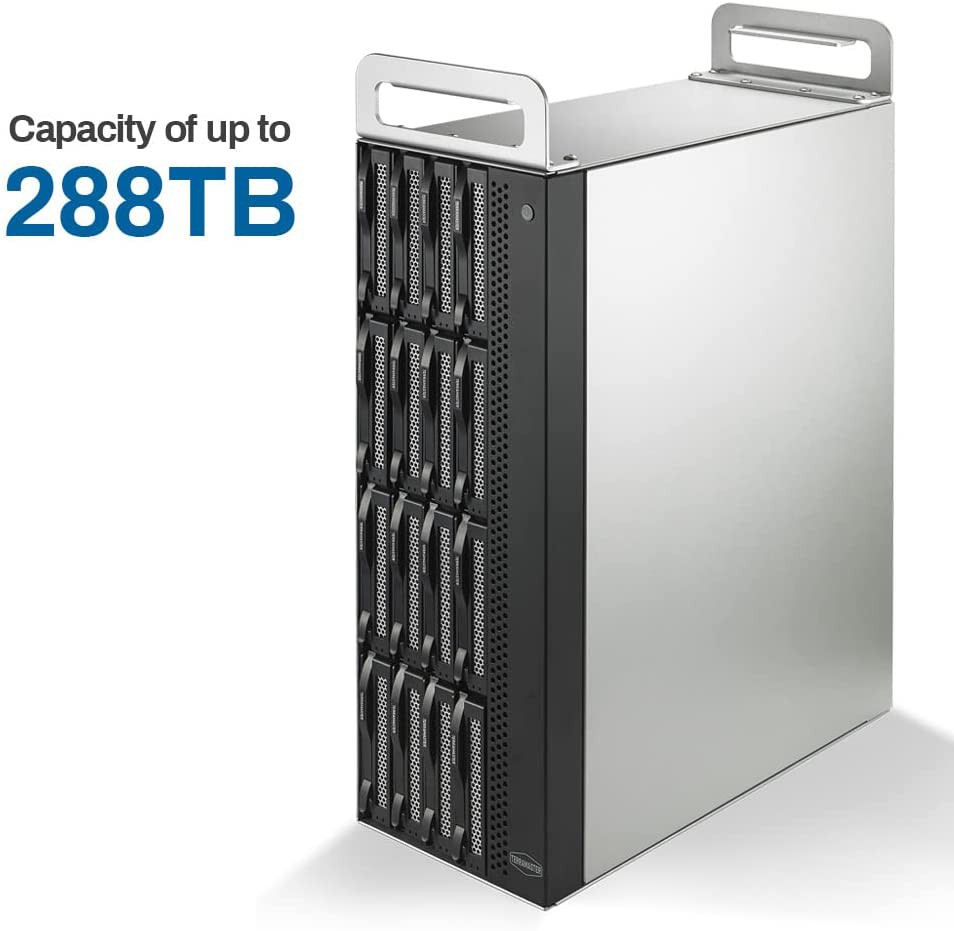

Up to 288TB of storage
Equipped with 16 SATA drive bays supporting 3.5" and 2.5" HDD/SSD. Includes hardware RAID with RAID 0, 1, 5, 6, 10 and JBOD modes plus automatic RAID rebuild.
Monitor support
Connect one 5K or two 4K monitors via Thunderbolt 3 and DisplayPort. Supports up to 3 displays.
Phone to monitor
Display your phone screen on a high-resolution monitor using Thunderbolt 3.
Compact design
Space-saving design with built-in handles for portability.

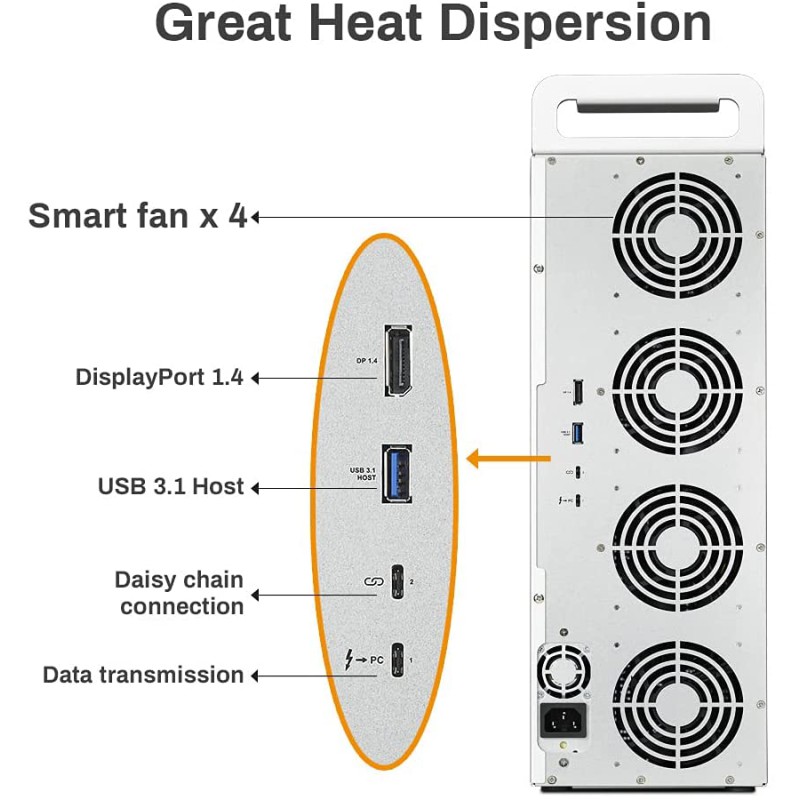

Cooling system
Aluminum body with intelligent fan ensures efficient heat dissipation.

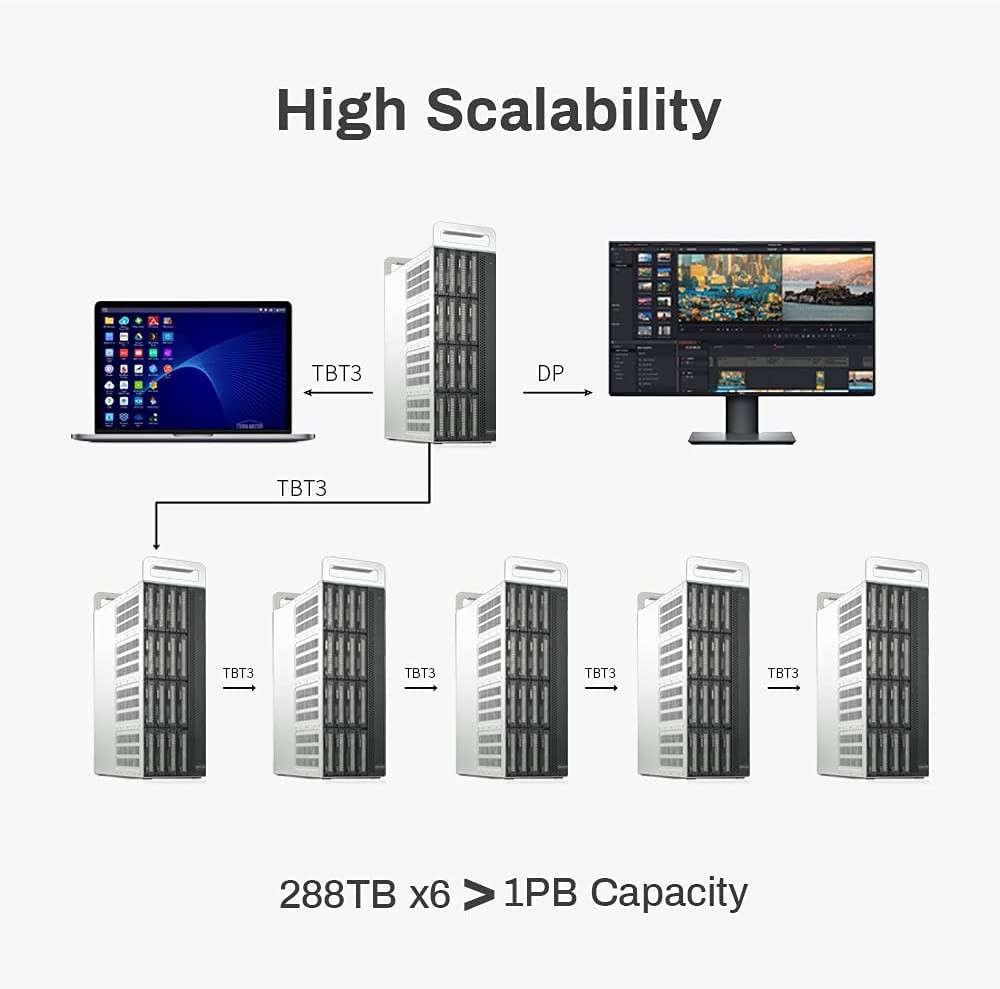

Daisy chaining
Supports connecting up to 5 additional Thunderbolt 3 devices.

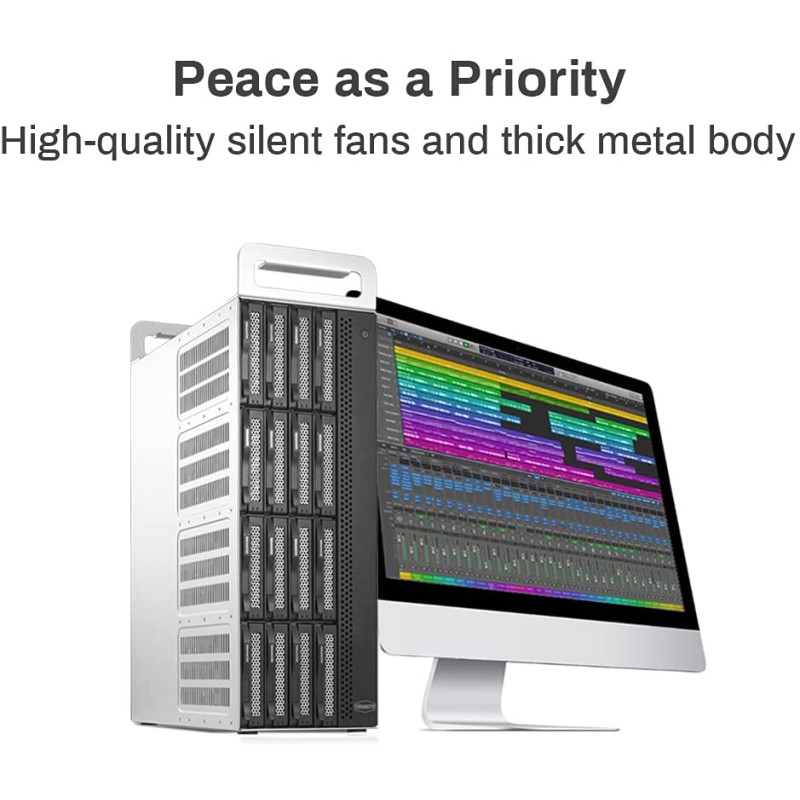

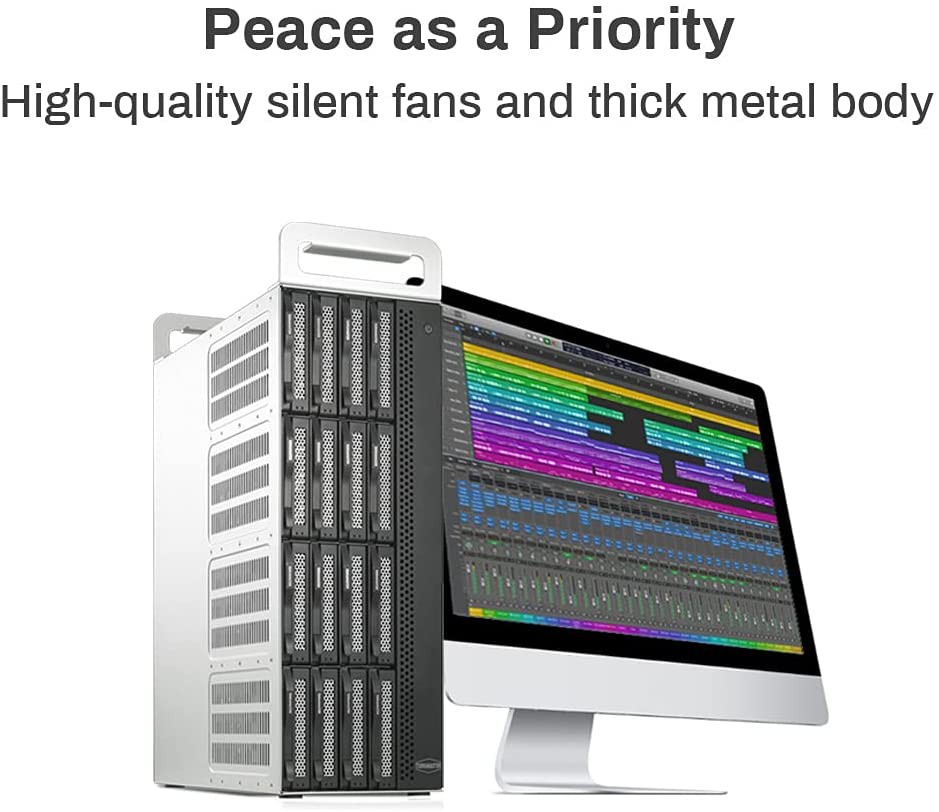

Low noise
Quiet fans and optimized airflow reduce noise even under load.
Technical Specifications
- Drive bays: 16
- Drive types: 3.5" SATA HDD, 2.5" HDD/SSD
- Max capacity: 288TB
- RAID: 0, 1, 5, 6, 10, JBOD
- Ports: Thunderbolt 3 x2, DisplayPort
- Max speed: 2817 MB/s (RAID 0)
- Dimensions: 348 × 160 × 498 mm
- Noise: 55 dB
- OS: Windows, macOS
- Warranty: 2 years
