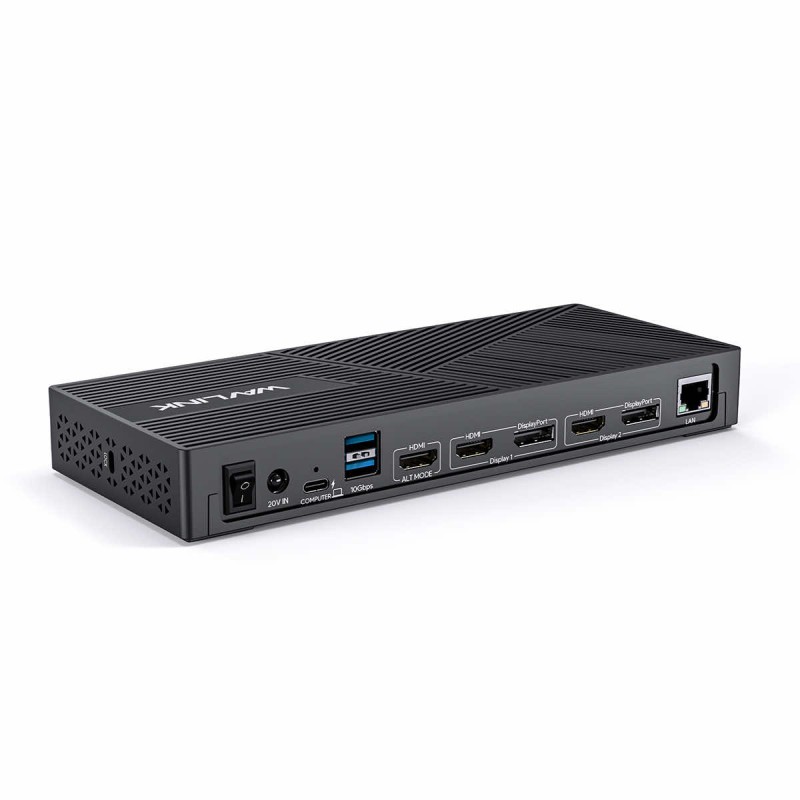

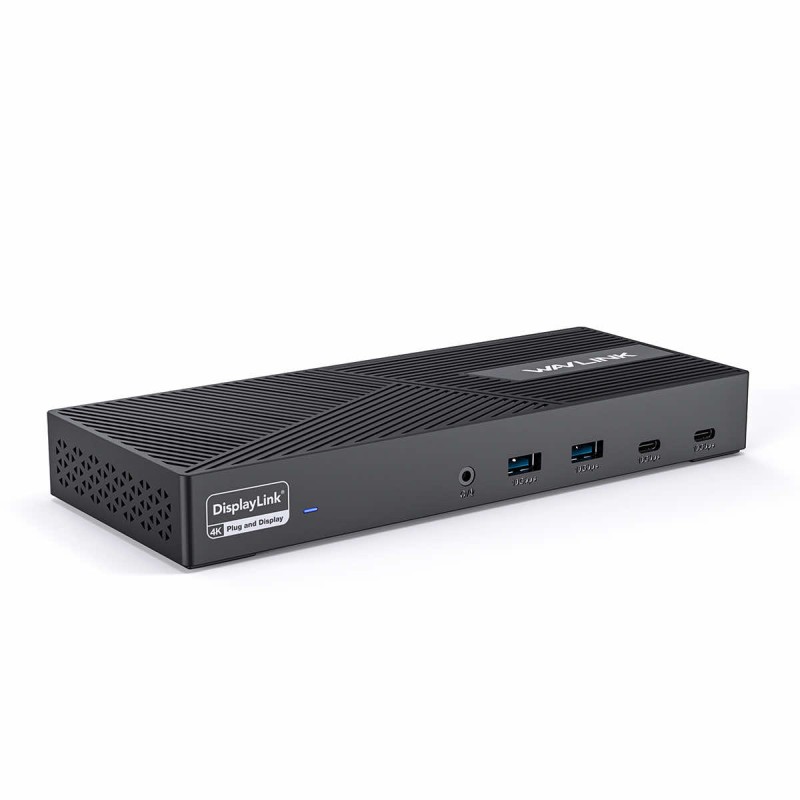

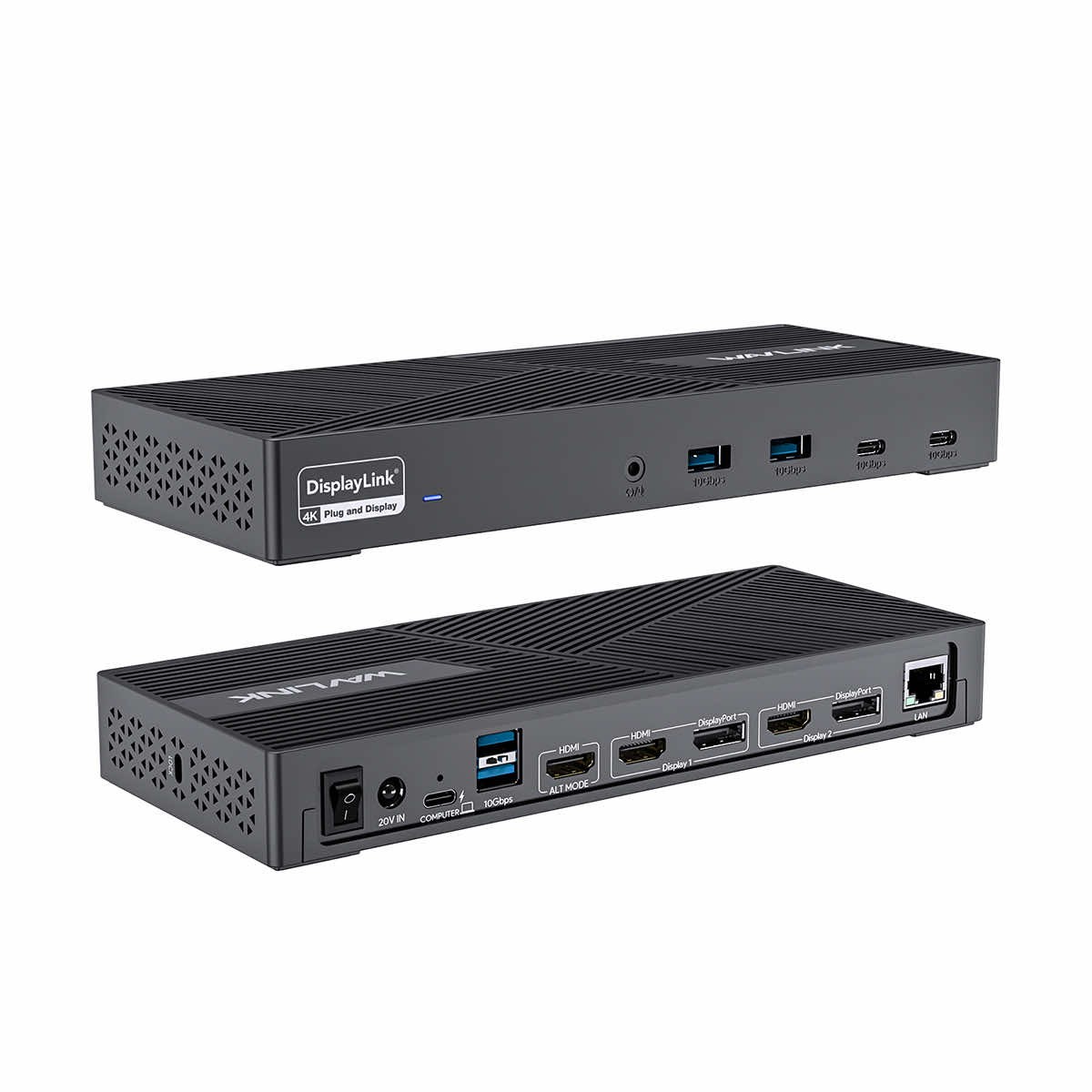

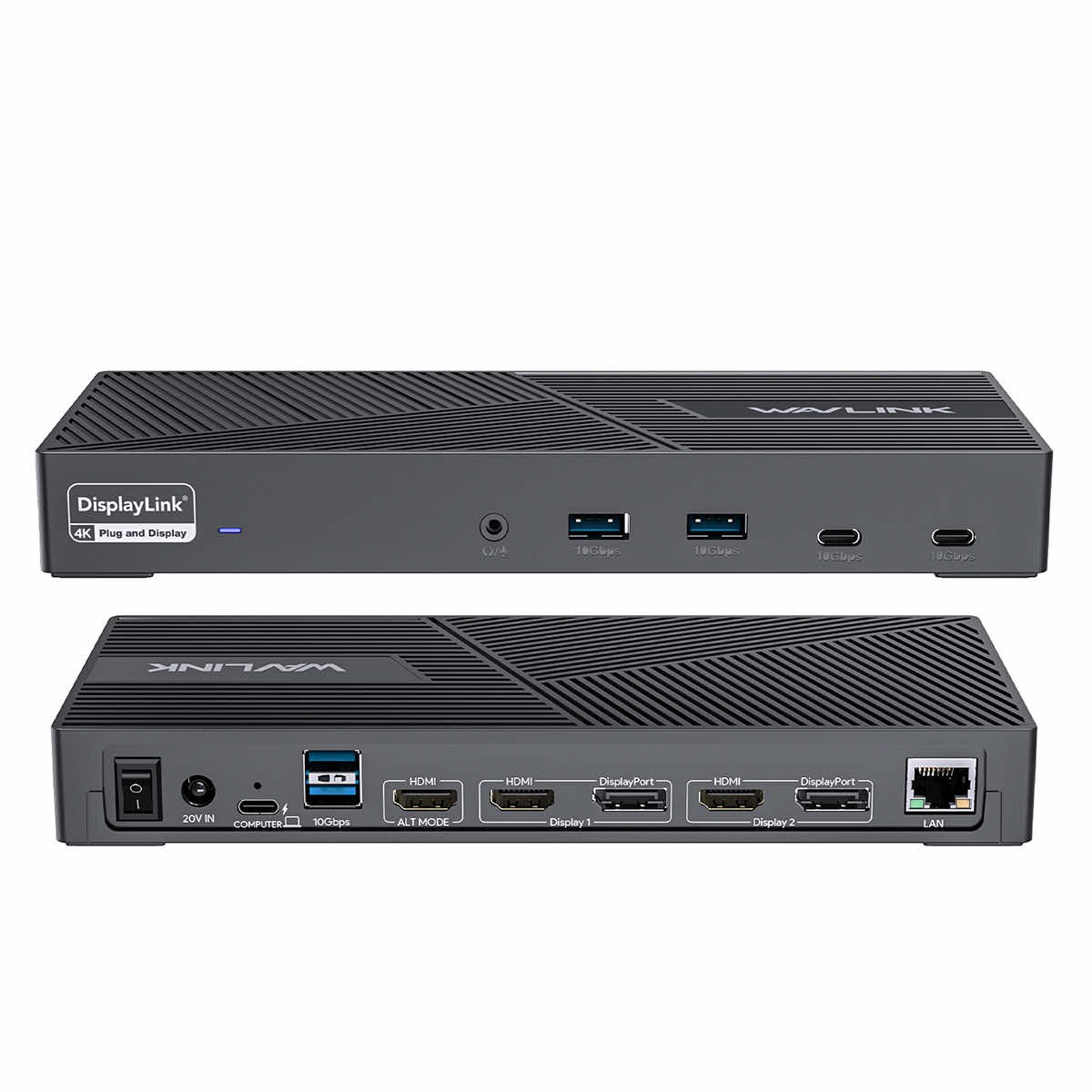

The Wavlink WL-UG69PD25 PRO docking station uses DisplayLink technology, which offers excellent compatibility with a wide range of devices capable of running DisplayLink software. It features two DisplayPort 1.4 ports and three HDMI ports, and supports up to three 4K displays. A USB-C interface is used to connect the computer, which can charge the connected device with up to 100 W of power. Two USB-C ports and four USB Type-A ports support data transfer at 10 Gbps. Additionally, the Wavlink WL-UG69PD25 PRO docking station is equipped with one 1 Gbps RJ45 Ethernet port and one 3.5 mm combo jack. Thanks to DisplayLink technology and fast additional interfaces, the Wavlink WL-UG69PD25 PRO docking station offers exceptional convenience.
WavLink USB-C 15-in-1 Triple 4K Display docking station with DisplayLink 3x 4K Display | 1GbE LAN | 6x USB 10 Gbs | 100W PD
The Wavlink WL-UG69PD25 PRO docking station uses DisplayLink technology, which offers excellent compatibility with a wide range of devices capable of running DisplayLink software. It features two DisplayPort 1.4 ports and three HDMI ports, and supports up to three 4K displays. A USB-C interface is used to connect the computer, which can charge the connected device with up to 100 W of power. Two USB-C ports and four USB Type-A ports support data transfer at 10 Gbps. Additionally, the Wavlink WL-UG69PD25 PRO docking station is equipped with one 1 Gbps RJ45 Ethernet port and one 3.5 mm combo jack. Thanks to DisplayLink technology and fast additional interfaces, the Wavlink WL-UG69PD25 PRO docking station offers exceptional convenience.
Key features of the Wavlink WL-UG69PD25 PRO docking station with DisplayLink technology
- 2x DisplayPort 1.4 ports and 3x HDMI 2.0 ports, supporting up to three 4K displays
- 1x USB Type-C UFP port supporting USB Power Delivery, enabling charging of connected devices at up to 100 W,
- 4x USB 3.1 Type-A ports (10 Gbps) providing fast connectivity with USB-A devices.
- 2x USB 3.1 Type-C ports (10 Gbps) for fast connectivity with USB-C devices.
- 1x Ethernet port supporting speeds up to 2 Gbps (10/100/1000 Mbps).
- 1x audio/microphone combo port
Maximum resolution of connected monitors
The docking station supports up to three 4K monitors – 3840x2160 @ 60Hz
Depending on the ports, the docking station can be connected to computers via a USB-C or USB-A connector, regardless of whether it is USB 3.2, 3.0, or 2.0
Technical Specifications
- Connection to computer: USB-C port; TYPE-C cable included
- Plug & Play: A DisplayPort driver is required for monitor connectivity; other functions support Plug & Play
- Power delivery to connected host: via USB (USB Power Delivery); supports USB PD 3.0 with up to 100 W
- USB ports: 2 x USB 3.1 Type-C 10 Gbps, 4 x USB 3.1 Type-A 10 Gbps Solution: PL5512 Video ports: 2 x DisplayPort 1.4, 3 x HDMI
- Audio solution: integrated 4-pole TRRS headphone jack: SSS1700
- Ethernet Speed: 1x RJ45 1 Gb/s
- LED: 1 x Power LED
- Security: Kensington Lock
- Power Supply: Included
- Operating Systems: Microsoft Windows 10/11, Apple Mac OS 11 or later, ChromeOS, Linux, Android
- Certifications: FCC, CE, ROHS
